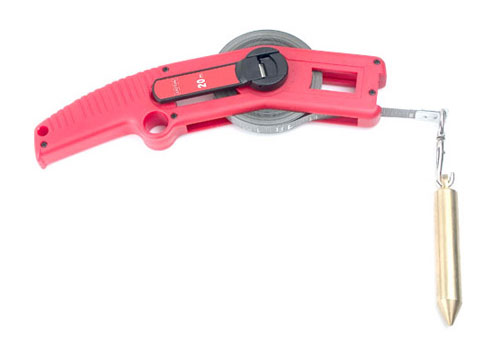

5-50M Oil Tank Measuring Gauging Tape with Brass Plumb Bob
Item: LOMT-GJ07
Product Name: 5-50M Oil Tank Measuring Gauging Tape with Brass Plumb Bob
Eastern is a professional factory specialized in manufacturing wide range of oil gauging tapes, plumb bobs, and accessories.
- Material: ABS handle, aluminium case flame, stainless steel tape, brass plumb bob..
- Color: white aluminium flame, red ABS handle.
- Specification: 10m/33ft, 15m/50ft, 20m/66ft, 25m/83ft, 30m/100ft, 50m/165ft.
- Logo: Eastern. accept OEM.
-
Three types of stainless steel blades are suitable for the tape :
a) White or yellow polymer resin painted steel tape blade (lacquered steel blade).
b) Black oxide blade (black etched blade).
c) Stainless steel etched blade. - Standard drop (plumb bob) is modle 19-1 sharp brass drop (also called sharp brass weight, plumb bob), we also make the drop according to customer's inquiry.
- Two side graduation tape blade, one side is MM graduation and another side is inch graduation.
- Heavy duty aluminium frame.
- Material of stainless steel tape is 0.20mm, material of white and black tape is 0.18mm.
Advantage Features of Stainless Steel Oil Measuring Tapes
- Eastern oil gaugeing tapes are strong and durable with a corrosion resistant frame. The frames come with safety handle.
- Easy operation.
- The oil tapes with black oxide blade and stainless etched blade are oil and acid resistant.
- The oil gauging tapes made of stainless steel and carbon steel have accurate calibration and strong corrosion resistance.
- Oil gauge tape blades have an abrasion and chemical resistant coating.
- Anti-static materials are used for ruler frame, handle, core wheel and ruler drop.

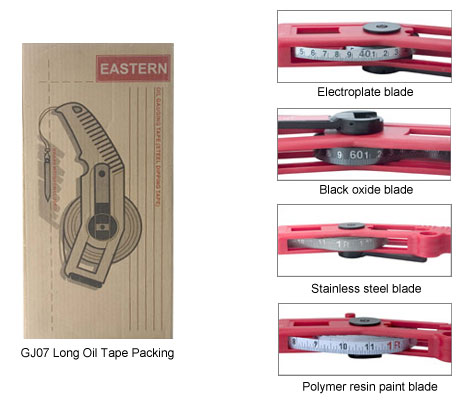

Blade Types Available for Eastern Oil Gauging Tapes
 |
 |
 |
|
White or Yellow Polymer Resin Painted Blade (Lacquered Steel Blade)
|
Black Oxide Blade (Black Etched Blade)
|
Etched Stainless Steel Blade
|
Read More information about Oil Tape Blade

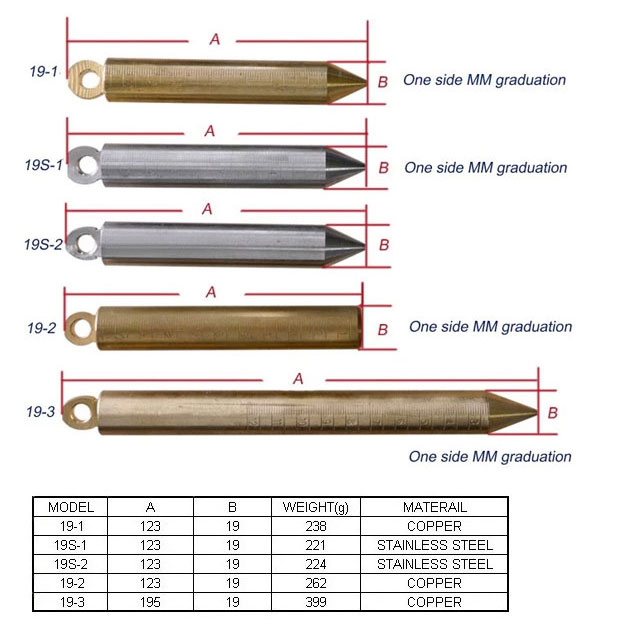

Flat or Sharp Brass Drop (Copper Weight, Plumb Bob) for LOMT GJ07 Oil Gauge Tapes
Plumb bob material: stainless steel or brass (copper) , Drop shape: flat or sharp.
Application of Stainless Steel Oil Measuring Tape
Explosion-proof oil tank measuring gauging tape are widely used for oil mining industry
Oil tape is suitable for measuring the liquid level height or depth of petroleum and other liquid products in various containers, such as oil tankers and oil storage tanks. It is also suitable for measuring the depth of water level at the bottom of containers.

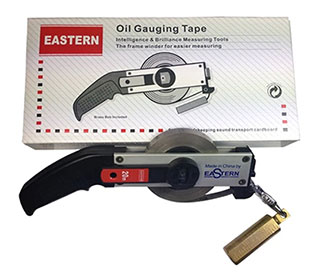

Package for Oil Gauging Tape
One piece in plastic bag, then in a color inner box, 10pcs in one export carton.
| Specification | Tape blade | Art. No. | QTY/CTN(pcs) | G.W/N.W | Meas.(cm) |
| 5m/17ft | white enamel tape | 10010201 | 20 | 16.5/15.5 | 49.5x34x34 |
| 5m/17ft | black oxide tape | 10010202 | 20 | 16.5/15.5 | 49.5x34x34 |
| 5m/17ft | stainless steel tape | 10010203 | 20 | 16.5/15.5 | 49.5x34x34 |
| 10m/33ft | white enamel tape | 10010204 | 20 | 17.5/16.5 | 49.5x34x34 |
| 10m/33ft | black oxide tape | 10010205 | 20 | 17.5/16.5 | 49.5x34x34 |
| 10m/33ft | stainless steel tape | 10010206 | 20 | 17.5/16.5 | 49.5x34x34 |
| 15m/50ft | white enamel tape | 10010207 | 20 | 18.5/17.5 | 49.5x34x34 |
| 15m/50ft | black oxide tape | 10010208 | 20 | 18.5/17.5 | 49.5x34x34 |
| 15m/50ft | stainless steel tape | 10010209 | 20 | 18.5/17.5 | 49.5x34x34 |
| 20m/66ft | white enamel tape | 10010210 | 20 | 20.5/19.5 | 49.5x34x34 |
| 20m/66ft | black oxide tape | 10010211 | 20 | 20.5/19.5 | 49.5x34x34 |
| 20m/66ft | stainless steel tape | 10010212 | 20 | 20.5/19.5 | 49.5x34x34 |
| 25m/83ft | white enamel tape | 10010213 | 20 | 22.5/21.5 | 49.5x34x34 |
| 25m/83ft | black oxide tape | 10010214 | 20 | 22.5/21.5 | 49.5x34x34 |
| 25m/83ft | stainless steel tape | 10010215 | 20 | 22.5/21.5 | 49.5x34x34 |
| 30m/100ft |
white enamel tape |
10010216 | 20 | 25.5/24.5 | 49.5x34x34 |
| 30m/100ft | black oxide tape | 10010217 | 20 | 25.5/24.5 | 49.5x34x34 |
| 30m/100ft | stainless steel tape | 10010218 | 20 | 25.5/24.5 | 49.5x34x34 |
| 50m/165ft | white enamel tape | 10010219 | 20 | 35.5/34.5 | 49.5x34x34 |
| 50m/165ft | black oxide tape | 10010220 | 20 | 35.5/34.5 | 49.5x34x34 |
| 50m/165ft | stainless steel tape | 10010221 | 10 | 35.5/34.5 | 49.5x34x34 |
 |
 |
| Accuracy of Oil Measuring Tape | LOMT GJ07 Package of Oil Gauge Tape |
Innage Oil Gauging Tapes and Outage Oil Gauge Measuring Tapes
There are 2 oil tapes to manually measurre the level of liquids in a large container using an oil gauging tape – Innage or Outage.
There are three basic operations that are conducted by tank gauging tape:
- How much liquid is already in the container? (Innage)
- How much more liquid can be put in the container? (Outage)
- When the liquid is oil, how much water has displaced oil in the bottom of the container?
