Stainless Steel Long Oil Gauge Tape Measure with Brass Weight

Item: LOMT-GJ05
Product Name: Stainless Steel Long Oil Gauge Tape Measure with Brass Weight

Eastern is a professional factory specialized in manufacturing wide range of oil gauging tapes, plumb bobs, and accessories.


  • Material: ABS handle,  aluminium case flame, stainless steel tape, brass drop.
  • Color: white aluminium flame, black and yellow  ABS handle.
  • Specification: 10m/33ft, 15m/50ft, 20m/66ft, 25m/83ft, 30m/100ft, 50m/165ft.
  • Logo: Eastern. accept OEM.
  • Three stainless steel types of blade are suitable for the tape:
    a)  White or yellow polymer resin painted steel tape blade (lacquered steel blade).
    b)  Black oxide blade (black etched blade).
    c)  Stainless steel etched blade.
  • Standard drop (plumb bob) is modle 25-1 flat brass drop (also called copper weight or flat plumb bob), we also make the drop according to customer's inquiry.
  • Two side graduation tape blade, one side is MM graduation and another side is inch graduation.
  • Heavy duty aluminium frame.
  • Material of stainless steel tape is 0.20mm, material of white and black tape is 0.18mm.

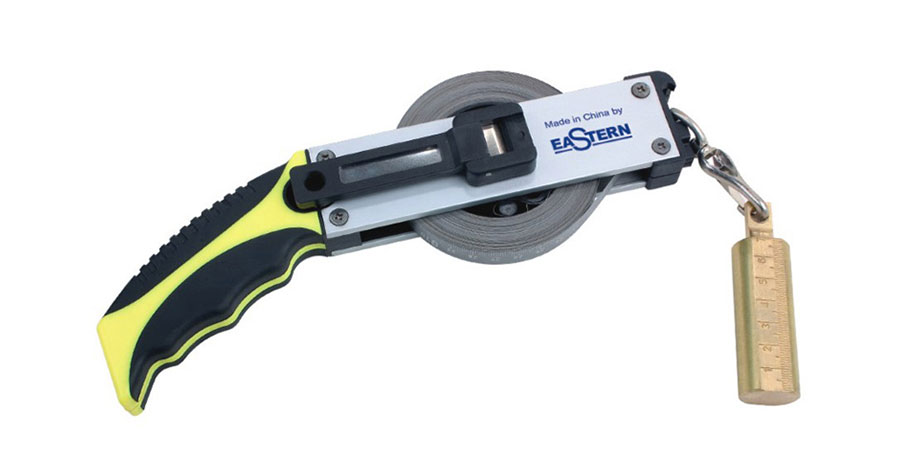

picture (image) of gj05-steel-long-oil-gauge-tape-measure.jpg

Advantage Features of Stainless Steel Oil Gauge Tape Measure

  • Eastern oil gaugeing tapes are strong and durable with a corrosion resistant frame. The frames come with safety handle.
  • Easy operation.
  • The oil tapes with black oxide blade and stainless etched blade are oil and acid resistant.
  • The oil gauge tapes made of stainless steel and carbon steel have accurate calibration and strong corrosion resistance.
  • Oil gauge tape blades have an abrasion and chemical resistant coating.
  • Anti-static materials are used for ruler frame, handle, core wheel and ruler drop.


Blade Types Available for Eastern Oil Gauge Tapes

White or Yellow Polymer Resin Painted Blade (Lacquered Steel Blade)
Black Oxide Blade (Black Etched Blade)
Etched Stainless Steel Blade


Read More information about Oil Tape Blade


Application of Measuring Tape

Explosion-proof oil tank measuring gauging tape are widely used for oil mining industry

Oil tape is suitable for measuring the liquid level height or depth of petroleum and other liquid products in various containers, such as oil tankers and oil storage tanks. It is also suitable for measuring the depth of water level at the bottom of containers.

Package for Oil Gauging Tape

One piece in plastic bag, then in a color inner box, 10pcs in one export carton.


Accuracy of Oil Measuring Tape Package of Oil Measuring Tape



Innage Oil Gauging Tapes and Outage Oil Gauge Measuring Tapes

There are 2 oil tapes to manually measurre the level of liquids in a large container using an oil gauging tape – Innage or Outage.

There are three basic operations that are conducted by tank gauging tape:

  1. How much liquid is already in the container? (Innage)
  2. How much more liquid can be put in the container? (Outage)
  3. When the liquid is oil, how much water has displaced oil in the bottom of the container?


Read More information about Oil Innage and Outage Tape

Just 500pcs get wholesale price of Stainless Steel Long Oil Gauge Tape Measure with Brass Weight made in China from Eastern - the best factory for distributor, importer, supplier and wholesaler.
