33ft 50ft 66ft 100ft 165ft Closed ABS Case Fiberglass Tape with Hook

Item: FGT-09
Product Name: 33ft 50ft 66ft 100ft 165ft Closed ABS Case Fiberglass Tape with Hook

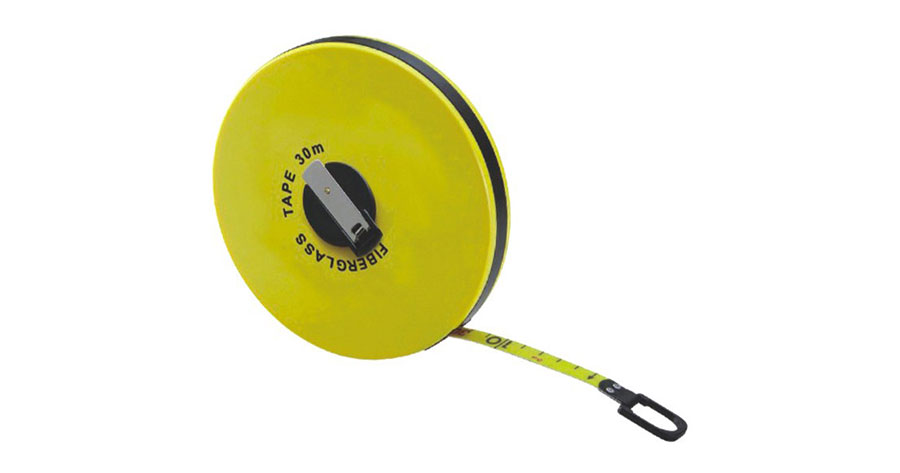

picture (image) of fgt-09.jpg

13mm width highly reinforced blade.



MODEL SPEC.(m/ft) QTY./CTN MEAS.(mm) G.W/N.W(kg)
1009 10/30 60 350*325*225 11/10
1509 15/50 60 380*350*260 15/14
2009 20/66 60 430*350*295 19/18
3009 30/100 60 560*350*350 27/26
5009 50/165 30 560*225*440 20/19



Features of 33ft 50ft 66ft 100ft 165ft Closed ABS Case Fiberglass Tape

These long fiberglass tape measures have a compact closed case that fits perfectly in your hand. The flush-folding design drives the crank pop up to rewind easily. When you measure by yourself, since the metal hook is set at zero, there is no need for an extra correction. These features are very popular, especially for those users who primarily do interior measuring work.

  • Closed-ABS housing design make the tape protected well.
  • The tape is made Metric scale on one side and Imperial scale measurements on the other.
  • Lightweight but strong case is perfect for handling and rewinding.
  • Better designed to prevent most of the damages than any other kind of measuring tape, more durable than steel tapes, more functional than cloth tailor tapes.
  • Human-friendly design makes it safe and healthy for human body,without injuries or cuts.
  • Water-proof, dirt-resistant, washable features all make them perfect choice for you.



Types of Zero Point of Long Closed Case Tapes Blade Structure of Long Fiberglass Tape
Types of Zero Point of Long Tapes Blade Structure of Fiberglass Tape
  • A: Zero point at outside of ring
  • B: Zero point at outside of ring
  • C: Zero point at outside of ring
  • D: Zero point at inside of hook
  • E: Zero point at inside of hook
  • F: Zero point at end fitting and inside of fold-in claw
  • G: Zero point at end fitting and inside of fold-in claw
  • H: Zero point approximate 10cm from the end fitting
  • L: Zero point at end fitting and inside of fold-in claw
  • A: Fiberglass stands
  • B: Permanent adhesion
  • C: PVC coating
  • D: Printing
  • E: Transparent PVC
  • F: Glare-proof embossed



Double-coated fiberglass tapes feature a transparent PVC coating which is able to resist wear up to 40 tims more than other non-coating fibreglass tapes.



Abrasion Test Result of Eastern Closed Case Fiberglass Tape

abrasion test result of eastern fiberglass tape

Eastern double coated fiberglass tapes resist 10,000 cycles (20,000 scrubs) . Other A grade brand fiberglass tape measures showing signs of wear and fading of the printing at 250 cycles (500 scrubs).

Procedure of Long Fiberglass Tape Measures

High intensity fiberglass - Coating with glue - Drying - Extruding - Embossing - Intensity Testing - Printing Screen - Welding heads & ends - Accuracy tesing - Packing



Minimal division value Max.permissible tolerance
1≤1 ±0.3
1< i ≤10 ±1
10< i ≤100 ±1.5



For Max.permissible tolerance see the table, if the length is within the minimal division value.

The Max.permissible tolerance is calculated as per the following formula,if the length is bigger than the minimal division value:

---Max.permissible tolerance in mm.
=±(1.2+0.8L)

L-Length value, The bigger and most approx . Round-numbered value in meter is taken in case a measured length is less than a round-numbered multiple of onemeter. The permissible to combined measuring tool is used.



Just 1000pcs get wholesale price of 33ft 50ft 66ft 100ft 165ft Closed ABS Case Fiberglass Tape with Hook made in China from Eastern - the best factory for distributor, importer, supplier and wholesaler.
