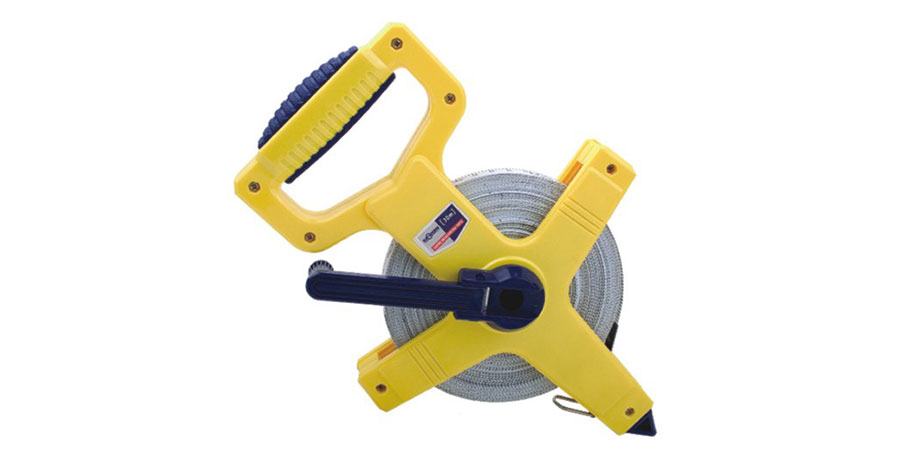

20m-100m Impact-Resistant Open Reel Long Fiberglass Measuring Tape

Item: FGT-J3
Product Name: 20m-100m Impact-Resistant Open Reel Long Fiberglass Measuring Tape

13mm width highly reinforced blade.

MODEL	SPEC.(m/ft)	QTY./CTN	MEAS.(mm)	G.W/N/W(kg)
J203	20/66	20	495460350	8/6
J253	25/83	20	495460350	8/6
J303	30/100	20	495460350	9/7
J503	50/165	20	505516392	15/13
J603	60/198	10	505454352	10/8
J753	75/248	10	505454352	11/9
J903	90/297	10	505454392	12/10
J1003	100/330	10	505454352	13/11

Features of 20m-100m Impact-Resistant Open Reel Long Fiberglass Measuring Tape

Open reel fiberglass tapes are your best choice for all length measuring needs. If you’re measuring alone, the metal catch hook is set at zero, so there’s no need for a correction. These are very popular with users that primarily do interior measurements.

Double coated blade makes the blade¡¯s markings and graduations protected from chemical and mechanical abrasions.
The double coated fiberglass blade is waterproof and dirt resistant.
Equipped with shock absorbing TPR bumpers.
Mult-functional versatile end hook.
Heavy duty ABS frame comes along with TPR hand grip which makes the grip easy to use.
Dual scale blade (double-scaled blade) allows measuring available in inch and metric.
Durable hand crank is made for easy winding.
The design with a metal spike at bottom is to strengthen the measuring stability.
Designed to withstand more wear and tear than any other kind of measuring tape, more durable than steel tapes, more functional than cloth tailor tapes.
Human-friendly design makes it safe and healthy for human body,without injuries or cuts.

Types of Zero Point of Long Tapes

Blade Structure of Fiberglass Tape

A: Zero point at outside of ring
B: Zero point at outside of ring
C: Zero point at outside of ring
D: Zero point at inside of hook
E: Zero point at inside of hook
F: Zero point at end fitting and inside of fold-in claw
G: Zero point at end fitting and inside of fold-in claw
H: Zero point approximate 10cm from the end fitting
L: Zero point at end fitting and inside of fold-in claw

A: Fiberglass stands
B: Permanent adhesion
C: PVC coating
D: Printing
E: Transparent PVC
F: Glare-proof embossed

Double-coated fiberglass tapes feature a transparent PVC coating which is able to resist wear up to 40 tims more than other non-coating fibreglass tapes.

Abrasion Test Result of Eastern Fiberglass Tape

abrasion test result of eastern fiberglass tape

Eastern double coated fiberglass tapes resist 10,000 cycles (20,000 scrubs) . Other A grade brand fiberglass tape measures showing signs of wear and fading of the printing at 250 cycles (500 scrubs).

Procedure of Fiberglass Tape Measures

High intensity fiberglass - Coating with glue - Drying - Extruding - Embossing - Intensity Testing - Printing Screen - Welding heads & ends - Accuracy tesing - Packing

Minimal division value	Max.permissible tolerance
1≤1	±0.3
1< i ≤10	±1
10< i ≤100	±1.5

For Max.permissible tolerance see the table, if the length is within the minimal division value.

The Max.permissible tolerance is calculated as per the following formula,if the length is bigger than the minimal division value:

---Max.permissible tolerance in mm.
=±(1.2+0.8L)

L-Length value, The bigger and most approx . Round-numbered value in meter is taken in case a measured length is less than a round-numbered multiple of onemeter. The permissible to combined measuring tool is used.
