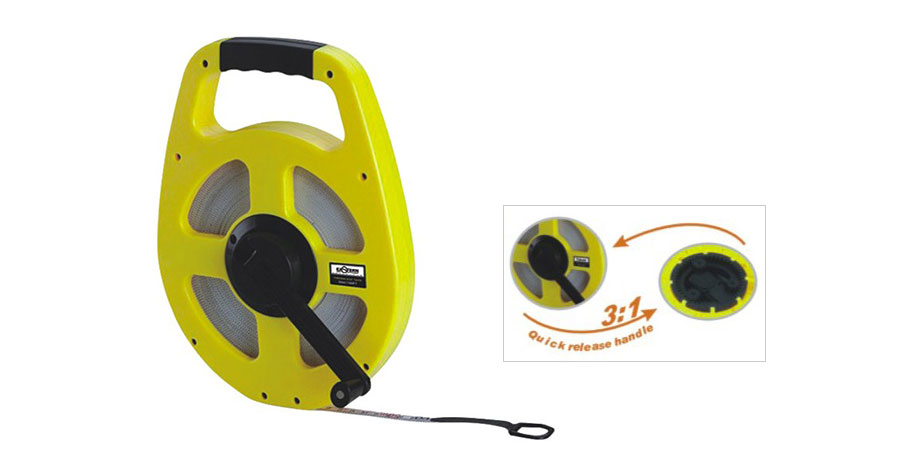

30m 50m Open Reel ABS Frame Heavy Duty Fibreglass Measuring Tape
Item: FGT-J10
Product Name: 30m 50m Open Reel ABS Frame Heavy Duty Fibreglass Measuring Tape
13mm width highly reinforced blade.
| MODEL | SPEC.(m/ft) | QTY./CTN | MEAS.(mm) | G.W/N/W(kg) |
| J3010 | 30/100 | 20 | 590*260*375 | 15/14 |
| J5010 | 50/165 | 20 | 480*310*455 | 17.5/16.5 |
Features of 30m 50m Open Reel ABS Frame Heavy Duty Fibreglass Measuring Tape
Open reel fiberglass tapes are your best choice for all length measuring needs. If you’re measuring alone, the metal catch hook is set at zero, so there’s no need for a correction. These are very popular with users that primarily do interior measurements.
- Double coated blade makes the blade¡¯s markings and graduations protected from chemical and mechanical abrasions.
- The double coated fiberglass blade is waterproof and dirt resistant.
- Equipped with shock absorbing TPR bumpers.
- Mult-functional versatile end hook.
- Heavy duty ABS frame comes along with TPR hand grip which makes the grip easy to use.
- Dual scale blade (double-scaled blade) allows measuring available in inch and metric.
- Durable hand crank is made for easy winding.
- The design with a metal spike at bottom is to strengthen the measuring stability.
- Designed to withstand more wear and tear than any other kind of measuring tape, more durable than steel tapes, more functional than cloth tailor tapes.
- Human-friendly design makes it safe and healthy for human body,without injuries or cuts.
| Types of Zero Point of Long Tapes | Blade Structure of Fiberglass Tape |
 |
 |
|
Double-coated fiberglass tapes feature a transparent PVC coating which is able to resist wear up to 40 tims more than other non-coating fibreglass tapes. |
Abrasion Test Result of Eastern Fiberglass Tape
Eastern double coated fiberglass tapes resist 10,000 cycles (20,000 scrubs) . Other A grade brand fiberglass tape measures showing signs of wear and fading of the printing at 250 cycles (500 scrubs).
Procedure of Fiberglass Tape Measures
High intensity fiberglass - Coating with glue - Drying - Extruding - Embossing - Intensity Testing - Printing Screen - Welding heads & ends - Accuracy tesing - Packing
| Minimal division value | Max.permissible tolerance |
| 1≤1 | ±0.3 |
| 1< i ≤10 | ±1 |
| 10< i ≤100 | ±1.5 |
For Max.permissible tolerance see the table, if the length is within the minimal division value.
The Max.permissible tolerance is calculated as per the following formula,if the length is bigger than the minimal division value:
---Max.permissible tolerance in mm.
=±(1.2+0.8L)
L-Length value, The bigger and most approx . Round-numbered value in meter is taken in case a measured length is less than a round-numbered multiple of onemeter. The permissible to combined measuring tool is used.
Just 1000pcs get wholesale price of 30m 50m Open Reel ABS Frame Heavy Duty Fibreglass Measuring Tape made in China from Eastern - the best factory for distributor, importer, supplier and wholesaler.
