10m-75m 30ft-250ft Closed ABS Housing Fiberglass Measuring Tape

Item: FGT-01
Product Name: 10m-75m 30ft-250ft Closed ABS Housing Fiberglass Measuring Tape

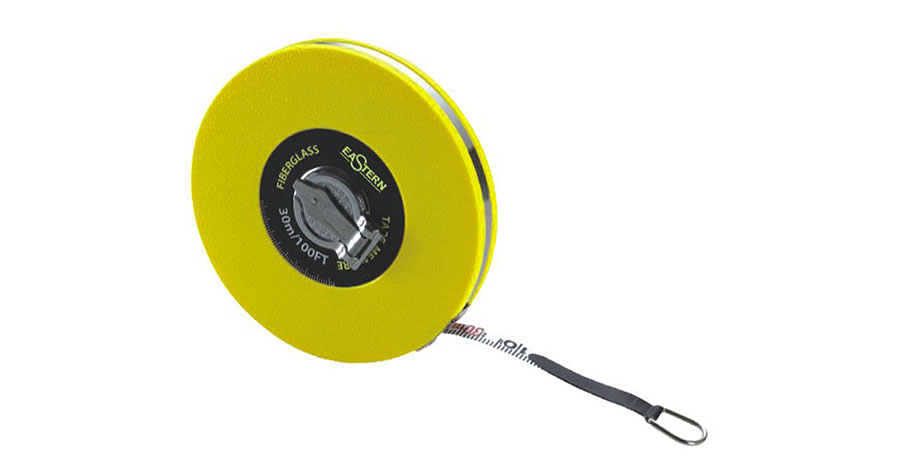

picture (image) of fgt-01.jpg

13mm width highly reinforced blade.



MODEL SPEC.(m/ft) QTY./CTN MEAS.(mm) G.W/N.W(kg)
1001 10/30 60 380*340*235 11/10
1501 15/50 60 380*380*255 16/15
2001 20/66 60 415*380*285 18/17
3001 30/100 60 495*395*340 27/26
5001 50/165 30 580*220*430 18/17
6001 60/200 12 460*245*245 9/8
7501 75/250 12 460*265*265 13/12



Features of  10m-75m 30ft-250ft Closed ABS Housing Fiberglass Measuring Tape

These long fiberglass tape measures have a compact closed case that fits nicely in your hand. The flush-folding crank pops up for easy rewinding. If you’re measuring alone, the metal catch hook is set at zero, so there’s no need for a correction. These are very popular with users that primarily do interior measurements.

  • Closed ABS housing protects the tape.
  • The tape have Metric scale on one side and Imperial scale measurements on the other.
  • Lightweight but strong case is easy to handle and rewind.
  • Designed to withstand more wear and tear than any other kind of measuring tape, more durable than steel tapes, more functional than cloth tailor tapes.
  • Soft, avoid injury or cuts, safe and healthy for human body.
  • Waterproof, dirt-resistant, washable.



Types of Zero Point of Long Tapes Blade Structure of Fiberglass Tape
Types of Zero Point of Long Tapes Blade Structure of Fiberglass Tape
  • A: Zero point at outside of ring
  • B: Zero point at outside of ring
  • C: Zero point at outside of ring
  • D: Zero point at inside of hook
  • E: Zero point at inside of hook
  • F: Zero point at end fitting and inside of fold-in claw
  • G: Zero point at end fitting and inside of fold-in claw
  • H: Zero point approximate 10cm from the end fitting
  • L: Zero point at end fitting and inside of fold-in claw
  • A: Fiberglass stands
  • B: Permanent adhesion
  • C: PVC coating
  • D: Printing
  • E: Transparent PVC
  • F: Glare-proof embossed



Double-coated fiberglass tapes feature a transparent PVC coating which is able to resist wear up to 40 tims more than other non-coating fibreglass tapes.



Abrasion Test Result of Eastern Fiberglass Tape

abrasion test result of eastern fiberglass tape

Eastern double coated fiberglass tapes resist 10,000 cycles (20,000 scrubs) . Other A grade brand fiberglass tape measures showing signs of wear and fading of the printing at 250 cycles (500 scrubs).

Procedure of Fiberglass Tape Measures

High intensity fiberglass - Coating with glue - Drying - Extruding - Embossing - Intensity Testing - Printing Screen - Welding heads & ends - Accuracy tesing - Packing



Minimal division value Max.permissible tolerance
1≤1 ±0.3
1< i ≤10 ±1
10< i ≤100 ±1.5



For Max.permissible tolerance see the table, if the length is within the minimal division value.

The Max.permissible tolerance is calculated as per the following formula,if the length is bigger than the minimal division value:

---Max.permissible tolerance in mm.
=±(1.2+0.8L)

L-Length value, The bigger and most approx . Round-numbered value in meter is taken in case a measured length is less than a round-numbered multiple of onemeter. The permissible to combined measuring tool is used.



Just 1000pcs get wholesale price of 10m-75m 30ft-250ft Closed ABS Housing Fiberglass Measuring Tape made in China from Eastern - the best factory for distributor, importer, supplier and wholesaler.
